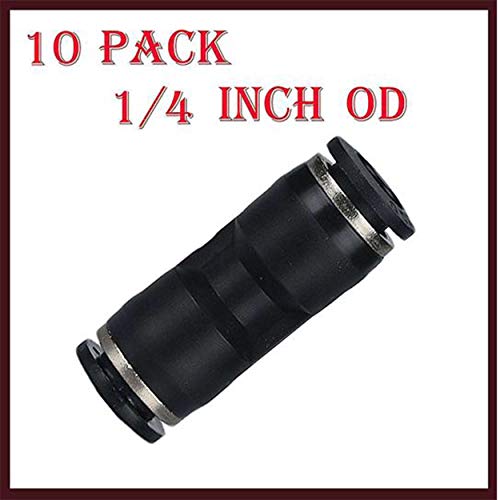

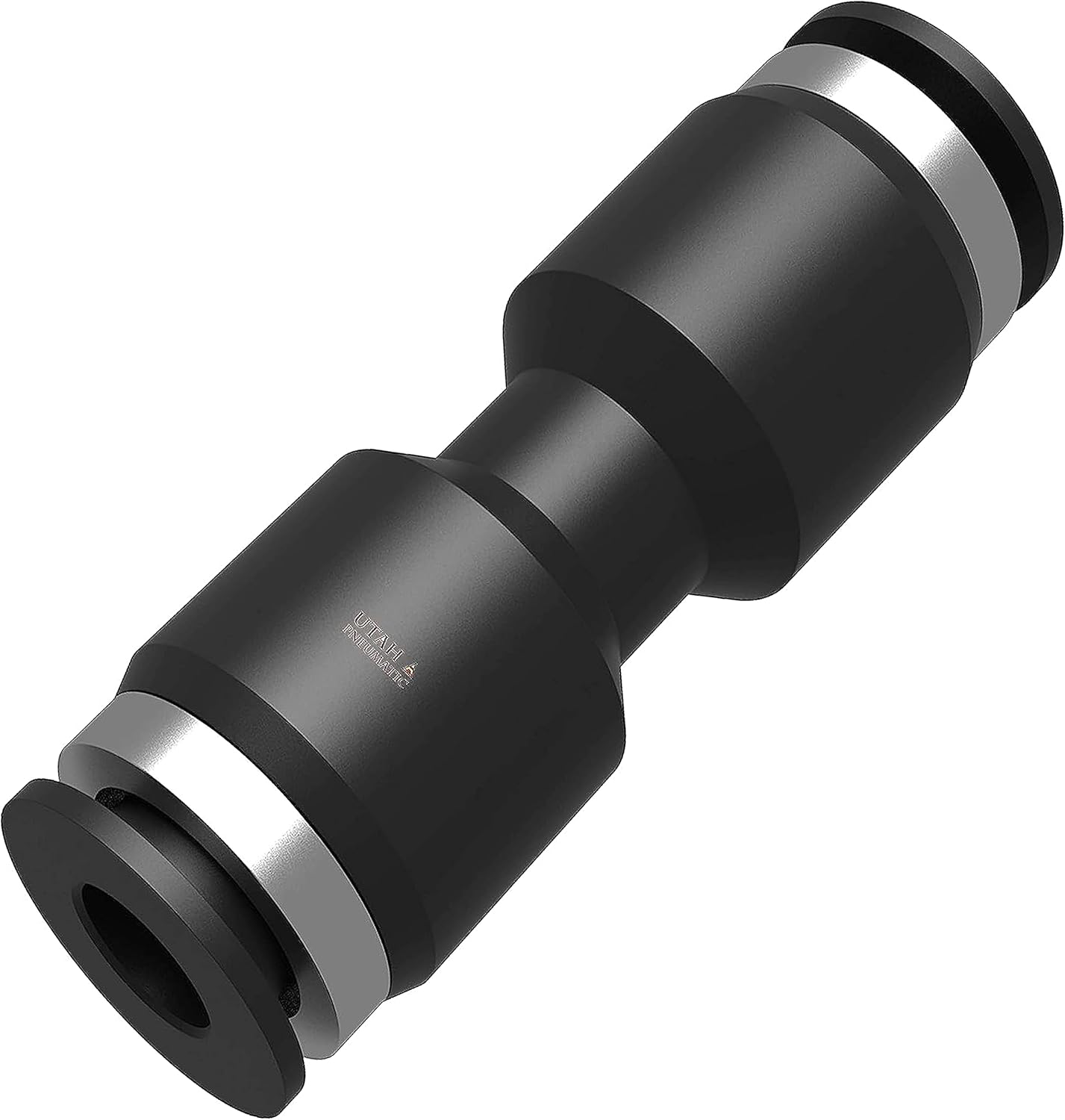

10 Pack Plastic Straight Air Line Push to Connect Fittings 1/4 Inch Od Tube Fittings Air Line Quick Connect Pushlock Air Fittings Tube Fittings Plastic Air Coupler

Tube Fittings Air Line Quick Connect Pushlock Air Fittings Tube Fittings Plastic Air Coupler

Features:

• Fluid:Air,vacuum,water Pressure Range:0-1Mpa120 psi) Max pressure:1.5 Mpa Temperature Range 0-60'C Applicable Tube:PU/NYLON/Soft PE hose.
• Quick installation,simple and flexible,space-saving. The tube fittings come in a wide variety of models to meet all your needs in penumatic piping. a wide variety of models to meet all your needs in penumatic piping.
• Even after installation,the direction of tubing can be changed freely . The release ring adapts the ellipse design to make it more convenient and laborsaving for disconnector.
• airline quick connect fittings push to connect air fittings assortment
• All fitting s equipped with the internal hexagonal holes.It's easy for them to be mounted in narrow place.be mounted in narrow place.be mounted in narrow place.

Publisher: Utah Pneumatic

Details: User's Guide
1. Except air and water,don't attempt to use the fittings on other fluids
2. The tube fitting is prohibited where spark and fire might be occurred
3. The tube fitting is prohibited if water temperature is above 60'C
4. Never apply tube joint with additional external load(bending,twist or
pulling),otherwise damage or leakage will be occurred.
Caution
Check the end of tubing for a right angle cutting and check the external surface of
tubing for any damage or scratch.Please refer to following instruction in connection
of tubing.When you insert the air tubing into the joint,you will have two-step
feeling.Section one is locking claw and section two is sealing ring.Must insert tube
into section two.
Sleeve is used in tubing connection and disconnection.The sleeve is designed as an
oval shape,which is covienient in assembly and disassembly.However,round sleeve is
available to met any special demand the product has limited space for oval
sleeve.After connection of tube joint and tubing,always try to pull tubing and ensure
its firm connection.
Always use proper tool to tighten external hexagonal and internal hexagonal parts of
the tube fitting.Always apply recommended torque on screws otherwise extra torque
might damage thread and cause air leakage while insufficient torque might cause
loose screws and air leakage.
After Screws are tightened,you may adjust the direction of tubing with most of our
tube joint.If it is hard in adjustment,you may apply recommended torque to turn
screw to adjust direction of tubing.

UPC: 650966585303

EAN: 0650966585303

Package Dimensions: 8.0 x 7.0 x 1.0 inches

Binding: Kitchen

Item Condition: New

Brand: utah pneumatic
