Push to Connect Air Fittings 1/4" Od 1/8" Npt Elbow Nickel-Plated Brass Pneumatic Fittings Air Line Fittings 90 Degree Air Fitting Union Fitting Pneumatic Connectors (5 Pack pl1/41/8b)

Push to Connect Air Fittings 1/4" Od 1/8" Npt Elbow Nickel-Plated Brass Pneumatic Fittings Air Line Fittings 90 Degree Air Fitting Union Fitting Pneumatic Connectors (5 Pack pl1/41/8b)

Features:

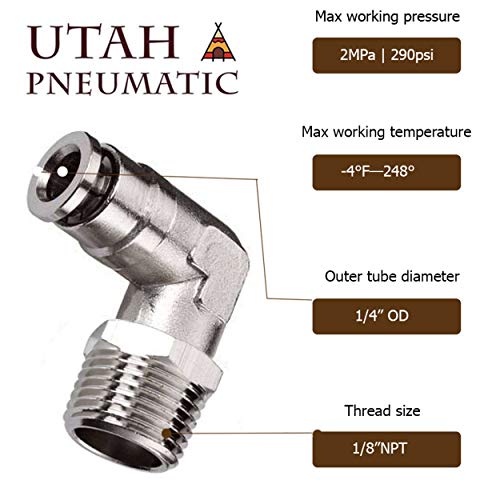

• SPECIFICATION: Acceptable : 1/4 Air Fitting Air Pressure Range: Max Working Pressure: 1Pa | 150psi/ Working Temperature:-20°C—120°C | -4°F—248°F Applicable Tube: PU/NYLON/Soft PE Hose Push Connect Air Fittings Push Tube Fittings
• Installation : Push To Connect Fittings Can Be Done Within A Short Period Of Time. This Tube Connector Is Available In Various Styles And Models Each Model To Serve Its Purpose All Models Of Push In Connector Are Designed To Suit Your Pneumatic Piping Needs Perfectly
• Thinking Of Changing The Tube Direction After Installation ? Air Line Push To Connect Fittings Be Relaxed . You Can Easily Change The Tubing Connector Direction Even After Installation. The Release Ring Conforms With The Ellipse Design OF Air Line Fittings Quick Connect Ensure That The Disconnecting Unit Is In Good Shape
• It's Important To Note The Taper Threads On Each Npt Air Fittings Are Properly Coated With Teflon For Optimal Performance Of The Entire Air System.All Push To Fit, Contains Internal Hexagonal Holes ; This Enhances The Installation Of The Push Connect Fittings Npt Fittings Process In A Narrow Space
• These Push In Fittings Meet The Pressures And Temperatures Mentioned. Our Brass Fittings For Plastic Tube Is More Resistant To High Temperatures We Are Ready To Serve You And Answer Any Questions Related To Our Connect It Fittings We Are Committed ToQuality Of Our pushlock air fittings push tube

Publisher: utah pneumatic

Details: CAUTION 1.The tube connectors are primarily made for air and water . Other fluid types are highly prohibited. 2. The use of pneumatic connector is limited to areas that are highly prone to fire outrage 3. Don't use the connections in areas whose water temperature is above 120'C 4. To avoid leakages and damage,you're advised to resist the temptation of adding extra loads to the push connectors USER GUIDE Carefully examine the tube connectors ends for a right angle cutting. Don't also forget to check the external connectors surface for any scratch. You need to consider the following guidelines during installations Fix the air hose connector into the joint ; there are two sections around this region namely : 1 Locking claw 2 Sealing ring : it's important to insert the tube into this ring. Use sleeve for fittings connection and disconnection.Note that the sleeve is an oval shaped plumbing material that is essentially used for assembling and disbanding purpose. The round sleeve is available for any plumbing needs.On the other hand, there is limited space for the oval sleeve. Once the connection has been established ,pull the connectors to confirm their firmness. Use the right tool to tighten the external hexagonal and internal hexagonal parts of the tube fitting. It's crucial for you to use the approved torque on screws. The use of other types of torque can damage thread and further lead to leakages . Low quantity of torque can as well lead to loosen screw and leakages. Adjust the tubes direction after the screws have properly the tightened. In a situation where the adjustment is quite difficult to achieve,use the recommended torques to change the direction of the tubing.

UPC: 662187378008

EAN: 0662187378008

Package Dimensions: 4.3 x 4.0 x 0.4 inches

Item Condition: New

Brand: utah pneumatic
