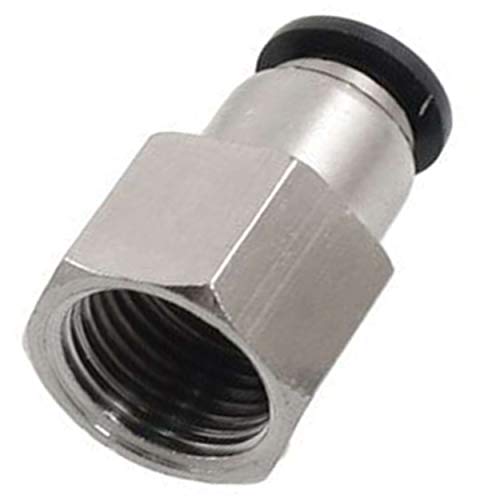

Push to Connect Air Fittings 3/8" Od 1/4" Npt Female Nylon & Nickel-Plated Brass Pneumatic Fittings Air Line Fittings Straight Union Fitting PTC Pneumatic Connectors (Pack of 10 Pcf)

Female Nylon & Nickel-Plated Brass Pneumatic Fittings Air Line Fittings Straight Union Fitting PTC Pneumatic Connectors

Features:

• Type:Push In Female Connector. Size:3/8” Tube OD 1/4”NPT.Female Weight:18.5g
• Fluid Admitted:Air, Vacuum, Water (No Freezing)
• Working Pressure:0-1.0mpa | 0-150psi. Proof Pressure:3.0Mpa | 435psi
• Negative Pressure-100Kpa | -29.5 In Hg. Body:Nickel Plated Brass Seal, O-Ring NBR
• Working Temperature: 0-60°C | 32～140°F. Applicable Tube:PU / PA / PE / PVC

Publisher: Utah Pneumatic

Details: Utah Pneumatic Fittings are a compact one piece push-to-connect fitting. All items in the Utah Pneumatic composite range are silicone free. The Stainless steel gripping ring ensures excellent tube retention while the D seal within the fitting provides a positive seal on the O.D. of the tube, in both static and dynamic positions, due to an optimized design of the fitting cavity. Utah Pneumatic composite should not be used for live swivel applications. Body and collar are made of Nylon 6.6, gripping ring is stainless steel, and D seal and O-rings are Nitrile.

UPC: 662187377995

EAN: 0662187377995

Package Dimensions: 5.8 x 4.5 x 0.7 inches

Item Condition: New

Brand: utah pneumatic
