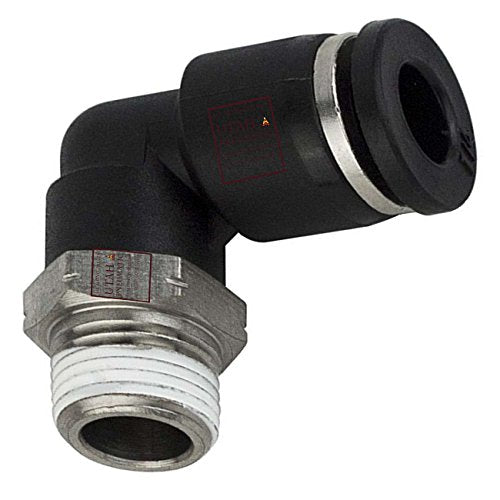

Push to Connect Air Fittings 8mm Od 1/4" Npt Elbow Nylon & Nickel-Plated Brass Pneumatic Fittings Air Line Fittings 90 Degree Air Fitting Union Fitting Pneumatic Connectors (Pack of 10

Push to Connect Air Fittings 8mm Od 1/4" Npt Elbow Nylon & Nickel-Plated Brass Pneumatic Fittings Air Line Fittings 90 Degree Air Fitting Union Fitting Pneumatic Connectors (Pack of 10

  • $16.85
  • Save $2.53


Brand: utah pneumatic

Features:

  • Type:Push In Male Elbow Connector. Size:1/4” Tube OD 8mm.thread fittings Weight:18.5g
  • Fluid Admitted:Air, Vacuum, Water (No Freezing)
  • Working Pressure:0-1.0mpa | 0-150psi. Proof Pressure:3.0Mpa | 435psi
  • Negative Pressure-100Kpa | -29.5 In Hg. Body:Nickel Plated Brass Seal, O-Ring NBR
  • Working Temperature: 0-60°C | 32~140°F. Applicable Tube:PU / PA / PE / PVC

Publisher: Utah Pneumatic

Details: Utah Pneumatic Fittings are a compact one piece push-to-connect fitting. All items in the Utah Pneumatic composite range are silicone free. The Stainless steel gripping ring ensures excellent tube retention while the D seal within the fitting provides a positive seal on the O.D. of the tube, in both static and dynamic positions, due to an optimized design of the fitting cavity. Utah Pneumatic composite should not be used for live swivel applications. Body and collar are made of Nylon 6.6, gripping ring is stainless steel, and D seal and O-rings are Nitrile.

UPC: 662187377964

EAN: 0662187377964

Package Dimensions: 7.8 x 5.6 x 1.2 inches

Item Condition: New
